Input

The input classes provide access to keyboard input from the terminal. They are designed for interactive applications such as dashboards, tools, and terminal games that need immediate key handling. For text prompts that still need cursor movement, editing, history, or masked input, cterm::ReadLine provides a complete interactive editor.

Usage

Polling for Keys in a Redraw Loop

For interactive applications, switch the input backend to key mode and poll for input with a timeout. This allows your application to update the screen regularly while still reacting to keyboard events.

using namespace std::chrono_literals;

terminal.input().setMode(Input::Mode::Key);
auto quitRequested = false;

while (!quitRequested) {
    if (const auto key = terminal.input().readKey(90ms); key.valid()) {
        if (key == U'q') {
            quitRequested = true;
        } else if (key == Key::Left) {
            // Move selection.
        }
    }
}

Using a timeout keeps the redraw loop responsive without busy waiting. In key mode, readKey(0ms) and any negative timeout perform a non-blocking poll. Use waitForKey() when you intentionally want to block until the next key arrives. The older read() wrapper is deprecated and now forwards to either readKey() or waitForKey().

Switching Between Key and Line Input

Input::Mode controls whether the terminal reads raw key presses or full lines of text. Mode::Key is the right choice for interactive applications with a redraw loop, while Mode::ReadLine fits prompts, configuration tools, and simple command-driven interfaces.

terminal.input().setMode(Input::Mode::ReadLine);
terminal.print("Name: ");
const auto name = terminal.input().readLine();

terminal.input().setMode(Input::Mode::Key);
terminal.printLine("Press any key to continue...");
const auto key = terminal.input().waitForKey();

Switching modes on the same terminal makes it easy to combine menu-driven screens with occasional free-form text input.

Reading Editable Text

Create cterm::ReadLine with a shared terminal and a copy of cterm::ReadLineOptions. The blocking interface starts the editor, waits for a terminal result, restores the input mode, and then returns.

auto options = ReadLineOptions{}
    .setTitle("Enter your name:")
    .setPadding(block::MarginPair{1, 2})
    .setMaximumLength(CpLength{100})
    .setPlaceholder("Your Name");
auto readLine = ReadLine::create(terminal, options);

const auto result = readLine->waitForInput();
if (result.isCommitted()) {
    useName(result.data());
} else if (result.isCancelled()) {
    handleCancellation();
} else if (result.isTimeout()) {
    handleTimeout();
}

Pressing cterm::Key::Enter commits the text, while cterm::Key::Escape cancels the operation. Only a committed result is successful and contains text. Cancellation, timeout, and idle results always contain an empty string.

Polling an Editor

Use start(), update(), and stop() when the surrounding application has its own update loop. An idle result means that the editor remains active but no terminal result is available yet. Committed, cancelled, and timeout results remain latched until stop().

auto readLine = ReadLine::create(terminal, options);
readLine->start();

while (true) {
    updateApplicationState();

    const auto result = readLine->update();
    if (!result.isIdle()) {
        if (result.isCommitted()) {
            processCommand(result.data());
        }
        break;
    }
}

readLine->stop();

ReadLine requires an interactive terminal in full-control output mode. Starting an editor on an unsupported terminal raises err::RuntimeError. The editor saves the previous input mode, switches to key mode, and restores the saved mode when it stops. While active, it exclusively owns the terminal output area; do not print unrelated terminal output from the application.

Editing and Multiple Lines

Text is inserted at the rendered cursor. The arrow keys move through wrapped and explicit lines, Home and End move within the current visual row, Backspace removes the editable unit before the cursor, and Delete removes the unit below it. Unicode combining sequences are edited and displayed as one unit, while maximumLength is measured in code points.

Set maximumLines above one to enable logical line breaks. The default new-line key is cterm::Key::F2, which avoids platform-dependent control-key decoding. It has no effect with the default one-line limit.

auto options = ReadLineOptions{}
    .setTitle("Release notes")
    .setMaximumLines(LineCount{8})
    .setMaximumDisplayLines(LineCount{4});

auto readLine = ReadLine::create(terminal, options);
const auto result = readLine->waitForInput(); // F2 inserts a line break.

Long logical lines wrap at the available width. Continuation rows align with the beginning of the editable text after prompt and padding. When the editor grows beyond maximumDisplayLines, it scrolls its edit rows to keep the cursor visible. The layout is recalculated after a terminal resize.

History and Draft Text

Pass a text::StringList to setHistory() to provide earlier values. Up selects older history at the first visual row and Down selects newer history at the last visual row. Moving beyond the newest entry restores the draft that was active before history navigation. Non-empty committed text is appended to the editor’s reusable history, except for consecutive duplicates.

setCurrentText() initializes the draft. Current text and history are copied by ReadLine::create() and truncated to the earliest configured code-point or logical-line limit, independent of the order in which the option setters were called.

Secrets and Placeholders

A placeholder is visible only while the edit buffer is empty. Use ReadSecret for passwords or tokens. Ordinary ReadLine always displays entered text. ReadSecret stores at most 1024 Unicode code points in a fixed buffer, renders only bullets, and returns a marked String in the ordinary ReadLineResult. It shares terminal lifecycle, key dispatch, layout, and rendering with ReadLine, while protecting its fixed input storage and marking committed UTF-8 before exposing it.

auto options = ReadLineOptions{}
    .setTitle("Access token")
    .setPlaceholder("Paste token");

auto token = ReadSecret::create(terminal, options)->waitForInput();
if (token.isCommitted()) {
    useToken(token.data()); // marked String
}

Secret input is always one logical and display line. History and current text are rejected, the new-line binding is unused, and requested lengths above 1024 are clamped. Left, Right, Home, End, Backspace, Delete, Unicode combined input, cancellation, timeout, blocking, and polling lifecycles behave like the corresponding single-line editor. Entering and leaving the editor purges pending backend key state.

The fixed application buffer and protected result reduce recoverable process-memory remnants, but do not erase kernel or terminal-driver queues and do not prevent swapping, crash dumps, register remnants, or process compromise.

Layouts and Cleanup

cterm::ReadLineDisplayStyle provides four adaptive layouts:

Compact             HorizontalSpace
<title>             <title>
<prompt> █          <prompt> █


HorizontalFrame                     Frame
─── <title> ────────────────         ┌─ <title> ──────────────┐
<prompt> █                           │<prompt> █               │
────────────────────────────         └────────────────────────┘

The input area uses the configured background, title, prompt, placeholder, text, cursor, border, and horizontal padding. The padding is a block::MarginPair whose leading and trailing values are clamped to zero or greater. The cursor is rendered into this area and blinks without moving the physical terminal cursor. Whenever editing, navigation, or history selection actually moves the cursor, the blink cycle restarts in its visible phase. This keeps the cursor visible while it is being positioned.

With cleanup enabled, stop() clears every row the editor occupied and returns to the original position. With cleanup disabled, it leaves the final area visible without its caret and places the terminal cursor at the beginning of the next line. stop() is idempotent, and destruction safely stops an active editor.

Inactivity Timeout

Set a positive timeout to end the operation after that many seconds without recognized editing or navigation input. Recognized edit, navigation, and history keys reset the timer even when the cursor or a configured limit prevents a change. Ignored keys and cursor blink updates do not reset it.

timeoutDisplayThreshold controls when the title begins displaying the remaining time as ceiling whole seconds. The default threshold is 20 seconds. For example, a 60-second timeout remains hidden until the countdown reaches 20s. Set the threshold to zero to disable the countdown display. If the configured timeout is at or below the threshold, the countdown is visible immediately.

The displayed form is appended to the title, for example Enter value [12s]. If the title is empty, the countdown is displayed on its own. The blocking editor waits only until the next input, blink, countdown, or timeout event, so it does not busy-wait.

Describing Key Bindings

InputDefinition represents a key binding together with the input mode it applies to. It is useful when describing configurable shortcuts or when displaying the currently active bindings.

auto quitKey = InputDefinition{Key{Key::Character, U'q'}, InputDefinition::ForMode::Key};
auto helpKey = InputDefinition{Key{Key::F1}, InputDefinition::ForMode::Key};

std::cout << "Quit: " << quitKey.toDisplayText() << "\n";
std::cout << "Help: " << helpKey.toString() << "\n";

The helper functions toDisplayText() and toString() make it easy to present key bindings in help screens or configuration output.

For interactive tools with one command bound to several keys, use Keys. It stores unique key presses in priority order, can test whether a decoded key is part of the set, and can separate main keys from alternatives for compact and detailed help.

Special keys may carry modifiers such as shift+up, ctrl+pageup, or alt+f4. Modified keys are distinct from their unmodified base key, so a binding for up does not also match shift+up. Printable text input remains text input: pressing Shift with a letter produces the resulting character, for example Q.

Matching Decoded Key Types

When you only care about the general kind of a key event, inspect Key::Type instead of comparing against a long list of individual keys. For character comparisons, prefer Unicode code points such as U'q' and use Key::unicode() or Key::combined() instead of the deprecated ASCII accessor. Character comparisons match the exact decoded code point, so compare against the exact character you want to handle.

using namespace std::chrono_literals;

if (const auto key = terminal.input().readKey(50ms); key.valid()) {
    if (key.type() == Key::Character || key.type() == Key::Combined) {
        terminal.printLine("Typed: ", BlockString{key.combined()});
    } else if (key.type() == Key::Escape) {
        terminal.printLine("Leaving key mode.");
    }
}

This is especially handy when the application wants to distinguish between text entry, navigation keys, and control keys before it decides how to handle the event.

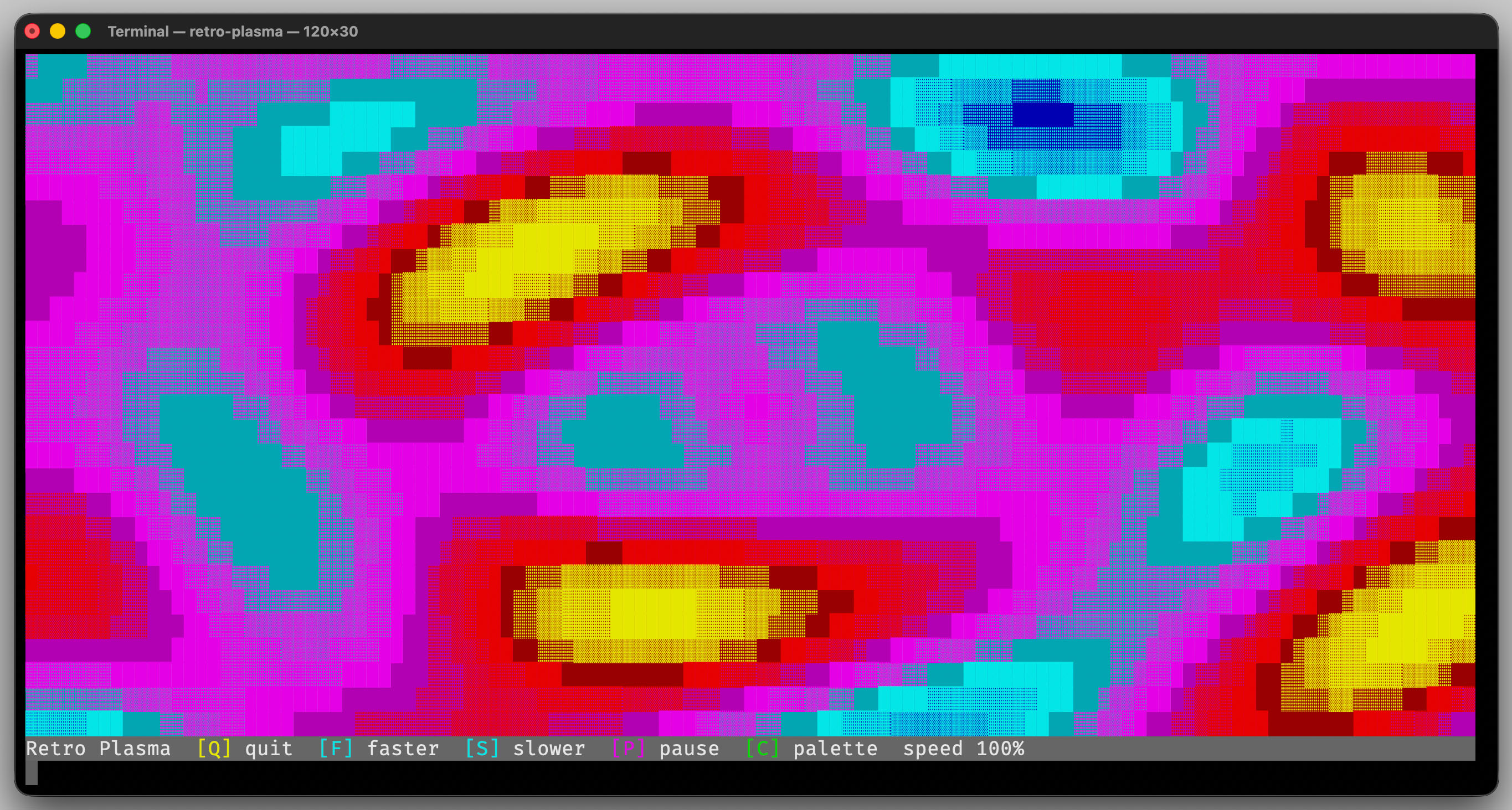

The animated demos use Input in key mode so screen redraws and keyboard handling remain responsive.
